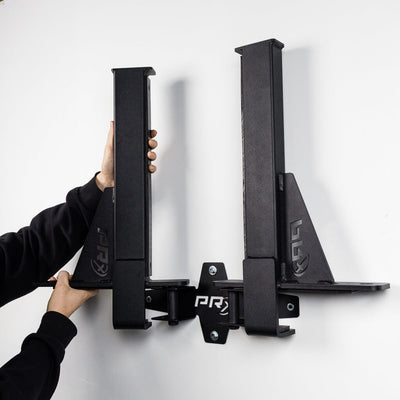

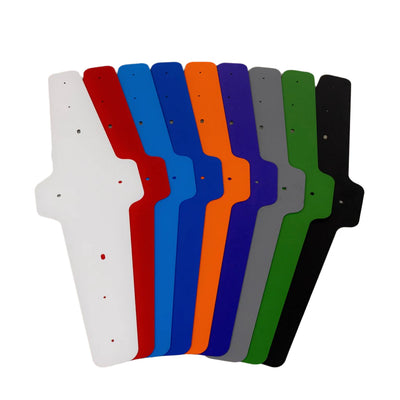

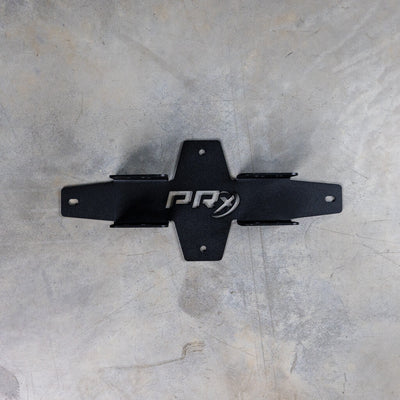

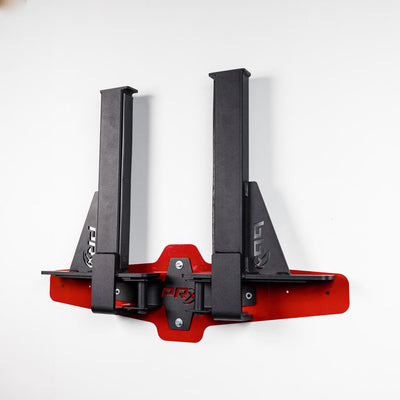

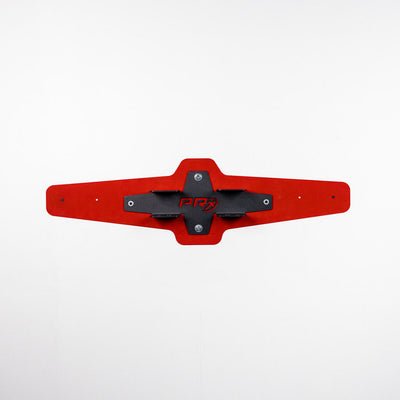

PRx Spotter Arm Storage Backer Plates

Ceiling Solutions for 90" Racks

This chart is a visual depiction of our ceiling solutions for shorter ceiling heights.

Ceiling heights lower than 108” require mounting the wall brackets lower. The lower the wall brackets are mounted, the result will be less depth from the wall and more angled arms.

Your Ceiling Height	Rack Depth	Rack Appearance
108"	21.75"	Standard Installation
107"	21.75"
106"	21.75"
105"	21.5"
104"	21.25"
103"	21"
102"	20.75"
101"	20.25"
100"	19.75"
99"	19.25"
98"	18.75"
97"	18"
96"	17"
95"	16"

Linkage Arm Angle

Please email or call us with any questions or concerns so we can make sure that you get the right instructions when you order! We will recommend what measurement fits you best, based upon your specific case.
