This chart is a visual depiction of our ceiling solutions for shorter ceiling heights.
Ceiling heights lower than 107” require mounting the wall brackets lower. The lower the wall brackets are mounted, the result will be less depth from the wall and more angled arms.
Your Ceiling Height |
Rack Depth |
Rack Appearance |
---|---|---|
107" | 21.75" |
![]() Standard Installation |
106" | 21.75" | ![]() |
105" | 21.75" | ![]() |
104" | 21.5" | ![]() |
103" | 21.25" | ![]() |
102" | 21" | ![]() |
101" | 20.75" | ![]() |
100" | 20.25" | ![]() |
99" | 19.75" | ![]() |
98" | 19.25" | ![]() |
97" | 18.75" | ![]() |
96" | 18" | ![]() |
95" | 17" | ![]() |
94" | 16" | ![]() |
Please email or call us with any questions or concerns so we can make sure that you get the right instructions when you order! We will recommend what measurement fits you best, based upon your specific case.

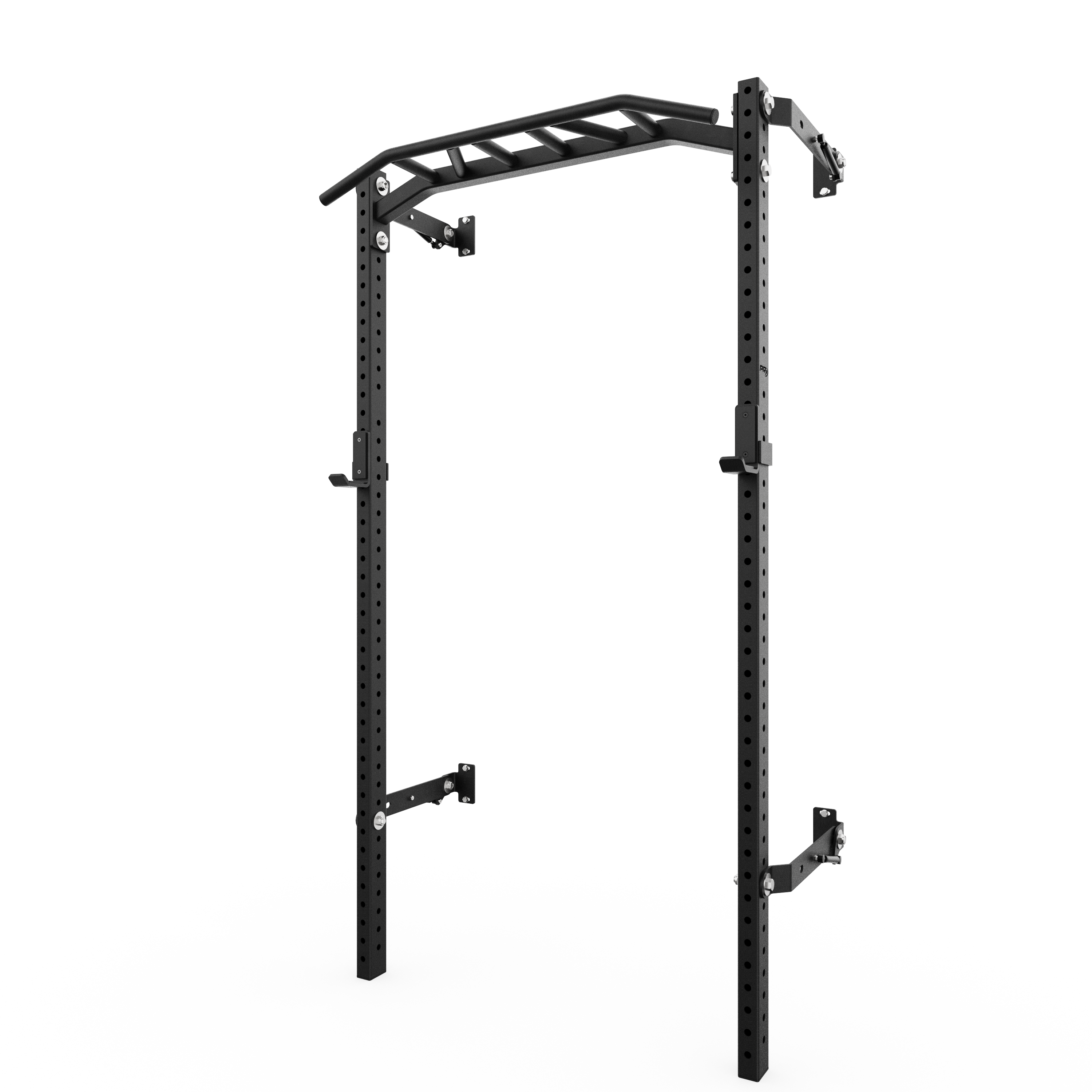

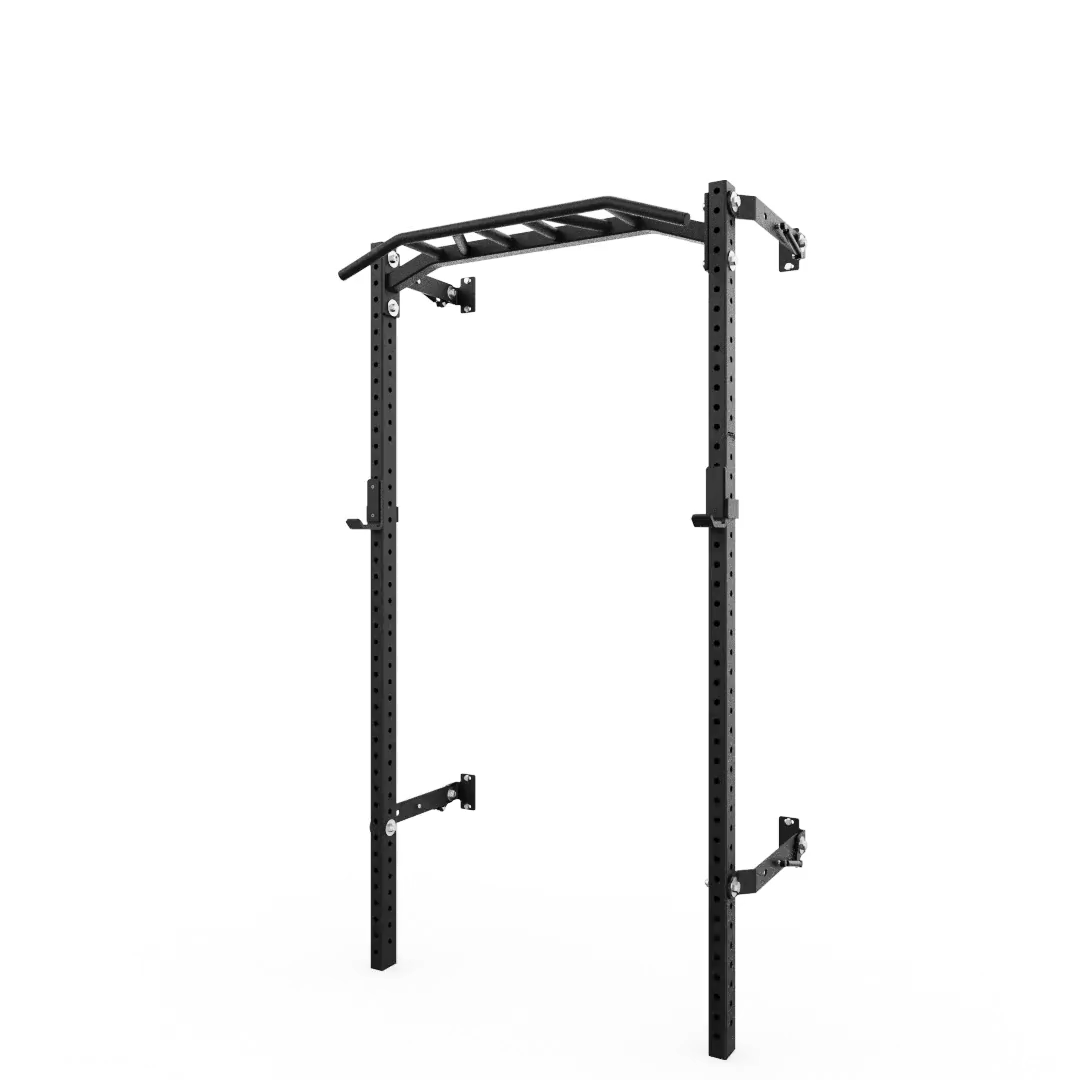

Introducing the Profile® ONE Squat Rack with Pull-Up Bar – your fitness fantasy turned reality! This wall-mounted squat rack is here to improve your home gym, whether it’s in your garage, your home, or a commercial setting. Start lifting big in your small space!
What's more, no need to break a sweat over disassembly once your workout is complete – it effortlessly folds away. When not in action, it maintains a slim 4" profile from the wall, ensuring you retain your precious space for other endeavors, without compromising on your home gym.
The Profile® ONE Squat Rack comes complete with sturdy J-Cups and sports a sharp black powder coat finish. And proudly, it's crafted right here in the USA.
For those looking to manage their investment wisely, explore our range of financing options. Let's embark on the journey to seamlessly incorporate fitness into your life!
Uprights | (2) 11-gauge 2x3 steel uprights 89" height Black powder coat |
Total Width | 52" |
Hole Size | 5/8" |
Hole Spacing | Front: 2" Side: 2" |
J-Cups | (2) heavy duty J-cups included |
Pull-Up Bars | 42" total length 1.25" bar diameter Tuff Coat powder coat |
Equipment | All mounting equipment & hardware included |
Capacity | 1000lb |
Clearance | 29.25" from wall folded down 11.25 from wall folded up |
Grip Options | Narrow neutral - 4.75" Angled - 13" Wide neutral - 24" Wide - 35" |
Clearance | 39.5" from wall folded down 22.5" from wall folded up |
89" Racks
Wall Brackets mount to 16" or 24" on center studs. If studs are unevenly spaced, a ledger board is required.
Ceiling not high enough? Studs not evenly spaced? We might have a fix! Email us at sales@prxperformance.com for details.
